FreeBSD at Home (1) : Replacing Linux with FreeBSD

So, this past few weeks I have been playing around with FreeBSD. Been trying to replace the Raspbian OS for my Pine64 and Raspberry Pi 1 B. End up compiling the FreeBSD source for Pine64 since those img files provided by raspbsd.org doesn't seem stable, and obviously outdated. I used Google's cloud based instance with Intel processor and 2 GB of RAM., fetched the sources r335557 from svn, and voilla, this is what I ended up with :

$ uname -a
FreeBSD pegasus.theprasojos.id 12.0-CURRENT FreeBSD 12.0-CURRENT #0 r335557: Sat Jun 23 05:15:53 UTC 2018     [email protected]:/home/lintang_prasojo/crochet/work/obj/usr/src/arm64.aarch64/sys/GENERIC

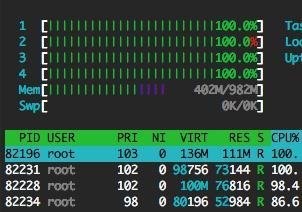

Before spinning up a GCP instance, I tried to compile the source using the FreeBSD installed in the Pine64 itself. I was thinking there was no need to do a cross-platform compilation for this board since I believe Pine64 itself is enough ( 4 processors, 2 GB RAM, Gigabit Interface, plus un-stable FreeBSD img :p ). All of the 4 CPU always reached 100% (see below image), and I always end up getting weird error. So I decided, lets spin up a GCP instance and try to use the Free Credit I have :D

Anyway, long story short. That was the attempt for Pine64 on FreeBSD. I plan to use this board as IPv6 gateway among other things (it will be my next post). I then continued with my other board, RPI1-B. My initial intention was to replace the Raspbian OS that holds the installation for my web cameras to FreeBSD. Of course, driver issue for the camera was the most annoying problem at the beginning, since FreeBSD only detected my Logitech webcam as ugen0.x device. For this board, I did not compile the source using crochet, but instead I used the 12-Current r335760 version (well, actually I also tried 11-2 Release and 11-2 Stable too, but somehow the cuse4bsd, webcamd, and Motion did not work well together, my webcam did not detected properly, hence the 12-Current).

$ dmesg| grep ugen
ugen0.1: <DWCOTG OTG Root HUB> at usbus0
ugen0.2: <vendor 0x0424 product 0x9514> at usbus0
ugen0.3: <vendor 0x0424 product 0xec00> at usbus0
ugen0.4: <vendor 0x046d Webcam C170> at usbus0
ugen0.5: <FTDI FT232R USB UART> at usbus0
ugen0.6: <vendor 0x046d product 0x0802> at usbus0

After spending some time browsing the net, the following website gave me enough clue on what I need to do by utilizing webcamd and cuse4bsd.

http://www.rockafunk.org/InstallWebcamd.html

So this webcamd looks like a middle layer driver in FreeBSD that deals with webcam, DVB, and some remote control usb devices. After enabling this webcamd, I began to see the device /dev/videoX in my FreeBSD which then will be used by the actual webcam software ( I used Motion for this). Webcamd requires a kernel module called cuse. To make sure that your FreeBSD has this module compiled, go to /boot/kernel/, there you should see a file called cuse.ko. This will then needs to be loaded using kldload command. Here's before the cuse module was loaded :

root@phoenix:~ # kldstat
Id Refs Address                Size Name
 1    1 0xffff000000000000  13d7bb8 kernel

And here's after the module was loaded :

root@phoenix:~ # kldload cuse
root@phoenix:~ # kldstat
Id Refs Address                Size Name
 1    2 0xffff000000000000  13d7bb8 kernel
 2    1 0xffff00005ce00000    41000 cuse.ko

Eh , but what if we don't have this cuse installed yet in our system ? Well, since I used RPI1-B, compiling from the ports source tree is the laaaast thing I want to do. So grab your coffee and start pkg-ing :). Install a package called cuse4bsd-kmod. And don't forget to install the webcamd package as well. Installing these 2 packages might take some time, so I used to run screen (or tmux if you prefer), and executes everything from there. It surely gave me the flexibility to simply go back to the session where I left it off ( especially if the internet connection is not speedy enough to reach a FreeBSD mirror somewhere in Japan :p ).

Also, one important thing. Since I wanted this cuse module to be loaded everytime my server gets re-booted, I added below entry in my /boot/loader.conf.

cuse_load="YES"

Now, since webcamd is supposed to create a new file that represents the device, here's how devfs comes into play. Since the new file/device needs to be accessed by other third party programs (Motion on this case), then it has to have the correct permission. This can be configured in /etc/devfs.rules by adding below :

[system=10]
add path 'video*' mode 0666

This will ensure that later on, /dev/videoX will have the necessary permission to be able to read by Motion.

Next is the usual rc.conf style configuration in BSD/Unix. I added the following line to enable all the daemon during the boot time.

webcamd_enable="YES"            # enabling the webcamd
devfs_system_ruleset="system"   # enabling the devfs.ruleset
motion_enable=YES               # enabling the Motion software

Don't forget to restart the devd daemon:

root@phoenix:~ # service devd restart

And now, the (almost) final peace, which is the device creation to represent our webcam. My web cameras are Logitech, and according to the dmesg entry above, it was detected below (notice the vendor id 0x046d belongs to Logitech ):

ugen0.4: <vendor 0x046d Webcam C170> at usbus0
ugen0.6: <vendor 0x046d product 0x0802> at usbus0

Now to create /dev/videoX, all we need to do is to execute the following command :

root@phoenix:~ # webcamd -d ugen0.6 -i 0 -v 0   ==> this will create /dev/video0
root@phoenix:~ # webcamd -d ugen0.4 -i 0 -v 1   ==> this will create /dev/video1

The order of which ugen0 device that should be /dev/video0 or /dev/video1 doesn't matter for me. It will then be handled by Motion software anyway. Here's how the webcamd daemon will run in the background after creating /dev/videoX.

$ ps auxw| grep -i webcamd
root  473 10.5  1.6 12708  7952  -  S<s  02:48   2:02.86 /usr/local/sbin/webcamd -i 0 -d ugen0.6 -B -U webcamd -G webcamd
root  424  8.1  1.7 13132  8444  -  S<s  02:48   1:39.46 /usr/local/sbin/webcamd -i 0 -d ugen0.4 -B -U webcamd -G webcamd

$ ls -ltra /dev/video*
crw-rw-rw-  1 webcamd  webcamd  0x6c Jun  9 02:48 /dev/video0
crw-rw-rw-  1 webcamd  webcamd  0x6d Jun  9 02:48 /dev/video1

That's it. The webcam is now ready to be used by Motion, so next is the Motion software configuration which I will not cover on this post. Just point the motion configuration into /dev/video0 and /dev/video1 on this case.

Also, few things I noted after running FreeBSD in Pine64 and RPI1B. Those RPI1B 12-Current seems a bit lagging after cuse, webcamd, and motion was installed. I either suspect the SDCard, or the CPU specs of RPI1B. But then, this lagging problem remains even after I replaced the SDCard with the new one, while the RAM utilisation it self was low, never reach more than 128MB (RPI1B has 512MB RAM). On the other hand, I observed that sometimes the CPU spikes until 100%. This high CPU utilisation seem to affect the connectivity. I can see that the USB Camera is still working ( the light was On), but I could not reach/ssh the RPI. At this point after several time testing, I decided to switch back to Raspbian for my RPI1B.

How about the Pine64 FreeBSD ? until the next post... :)
